Intelligent Curve Traffic Controller Fast Response Low Maintenance RS 485 AC 220V

Ask Lasest Price
Brand Name :	JUTAI
Model Number :	BR-101B
Certification :	CE
Price :	Nrgotiation
Payment Terms :	L/C, D/A, D/P, Western Union, T/T, Alipay
Supply Ability :	1000 pcs per month
Delivery Time :	5-8 working day

Add to Cart

Product Details
Company Profile

Intelligent Curve Traffic Controller Fast Response Low Maintenance RS 485 AC 220V

Intelligent Traffic Curve Controller With Fast Response Low Maintenance RS 485 AC 220 V

Discover the next generation of traffic management with our Intelligent Traffic Curve Controller. Designed to enhance road safety and improve traffic flow, this advanced device offers rapid response capabilities that adapt to real-time conditions. Whether it’s a busy urban intersection or a winding rural road, our controller ensures optimal performance by quickly adjusting to changing traffic patterns, reducing congestion, and minimizing accidents.

What sets our Curve Controller apart is its low-maintenance design. Engineered with durability in mind, it requires minimal upkeep, saving you time and resources. The robust construction withstands harsh weather conditions, ensuring reliable operation year-round. Built-in diagnostics continuously monitor system health, providing alerts when maintenance is needed, making it easier than ever to keep your traffic management system running smoothly.

Incorporating cutting-edge technology, our controller is also user-friendly, featuring an intuitive interface that simplifies configuration and monitoring. Installation is straightforward, with comprehensive support and documentation provided. By choosing our Intelligent Traffic Curve Controller, you’re investing in a solution that delivers both efficiency and peace of mind, ensuring safer and more efficient roads for everyone.

curve traffic controller

Connection Indicate

Connect port	Function	Connect port	Function
Power+	+12VDC	P_NO	Reserved
Power-	- 12VDC	P_NC	Reserved
Earth	Earth Line	P COM	Reserved
RS 485_A	Communication between control panels	W_NO	Warning Light
RS 485_B	Communication between control panels	W_NC	Warning Light
RS 422_B	Reserved	W_COM	Warning Light
RS 422_A	Reserved	T_NO	Traffic Light
RS 422_Y	Reserved	T_NC	Traffic Light
RS 422_Z	Reserved	T_COM	Traffic Light
CH1 RELAY COM	Dual loop detector CH1 relay	IN2+	Reserved
CH1 RELAY NO	Dual loop detector CH1 relay	IN2-	Reserved
CH2 RELAY COM	Dual loop detector CH2 relay	IN1+	Reserved
CH2 RELAY NO	Dual loop detector CH2 relay	IN1-	Reserved

Work Type Aplication Reference

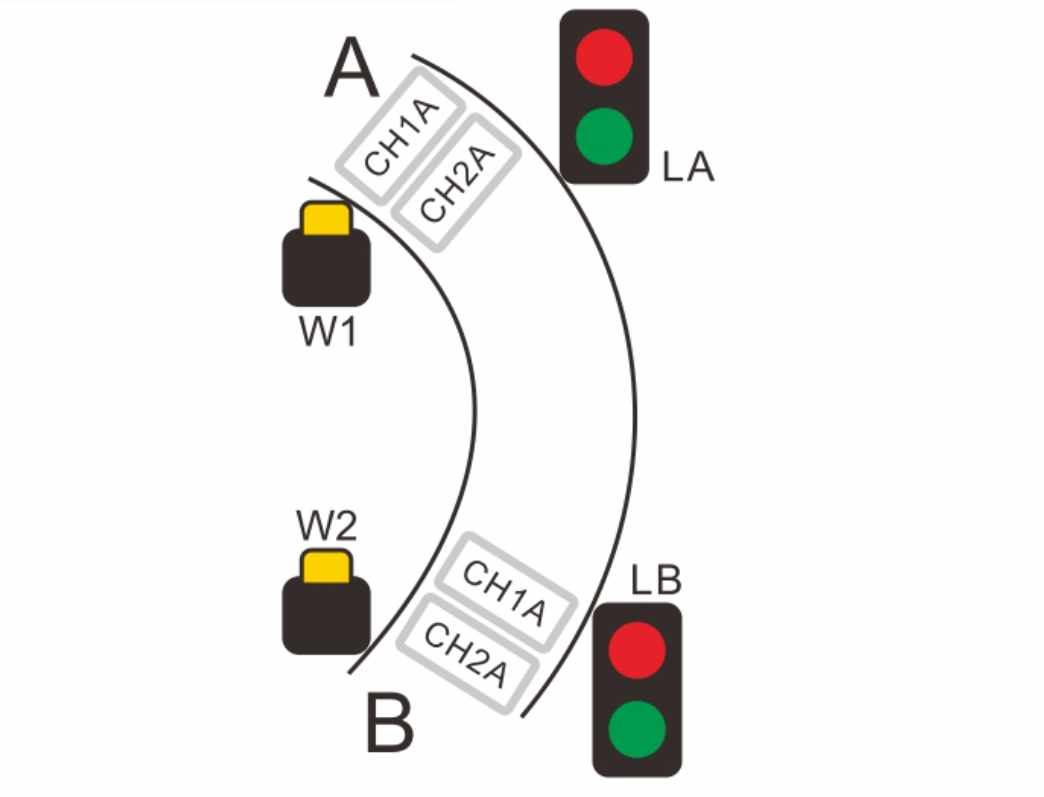

Work Type 1

1.The vehicles on the curve both exit and entrance.

Products list:

1 pcs small traffic controller

2 pcs traffic LED light

2 pcs dual channel loop detector

1 pcs single loop detector

2 pcs Warning light

loop cable and power line

Note: The optimal transmission distance of the curve controller is 100m, and if the application distance is more than 100m, two controllers are required.

2. Working principle:

When there is no vehicle on both sides, both sides show green light, when there is a car

When entering CH1B to CH2B (or when a car enters CH1Ato CH2A),The alarm W1(W2) sounds.

At this point the light LB remains green (LA remains green), while LA(LB) is composed of Turn red, no vehicles allowed, wait 3 seconds (6 seconds by dial code).

Set the selection. If the car continues in direction B (direction A), After a large number of vehicles are released, it is forced to switch to a red light and wait for 3 seconds (6).

If no vehicle passes in direction A (direction B) after seconds by the dial code, Both sides are in green light status.

Note: count when entering CH2B in direction B or CH2A in direction A As a notation.

traffic controller

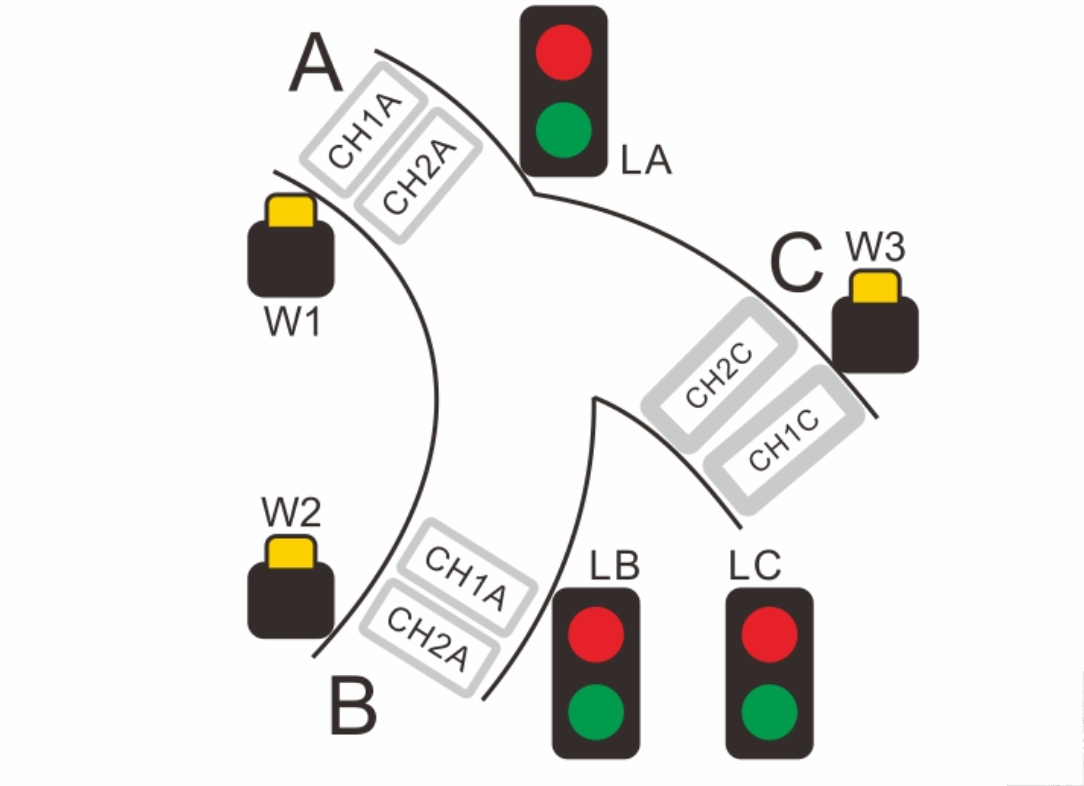

Work Type 2

1.The vehicles for three entrances and exits

Products list:

3pcs small traffic controller,

3pcs traffic LED light

3pcs dual channel loop detector

1pcs single loop detector

3pcs Warning light

loop cable and power line

2. Working principle:

When there is no vehicle on the three sides, the three sides all show green light, when there is a car entering CH1B to CH2B, alarms W1 and W2 sound.

At this time, the light LB is still green, while LA and LC change from green to red,No vehicles allowed, wait 3 seconds (6 seconds by dial code).

If there are more cars in direction B, After a large number of vehicles are released, it is forced to switch to a red light and wait for 3 seconds (6).

If no vehicle passes in direction A and direction C after seconds (dial code).

All sides are green.

Note: count when entering CH2B in direction B or CH2A in direction A As a notation.

Traffic Controller

Wiring reference

traffic control
