15m Detection Range And Low Radiation Value UHF Long Range Reader
For Parking Management IP 65
The UHF Long Range Reader for Parking Management is engineered to
deliver outstanding performance with a detection range of up to 15
meters, making it ideal for efficient vehicle access control. This
reader significantly enhances the entry and exit processes in
parking facilities, allowing for swift identification of RFID tags
and reducing wait times for drivers.
Designed with user safety in mind, this reader operates with low
radiation values, ensuring minimal exposure for users and staff.
Its IP65 rating guarantees robust protection against dust and
water, making it suitable for outdoor installations in various
weather conditions, ensuring reliable performance year-round.
This UHF Long Range Reader is easy to install and can seamlessly
integrate into existing parking management systems, providing a
flexible and effective solution for commercial lots, residential
complexes, and gated communities. Experience the benefits of
advanced RFID technology with this long-range reader, designed to
optimize parking management and enhance user convenience while
maintaining high security standards.
DataSheet Of Long Distance 902-928MHz UHF RFID 125kHz RFID Card
Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader
Due to its long transmission distance and high transmission rate,
it has received more attention all over the world. The PUHF-9-12db
developed by JUTAI adopts multi-protocol and integrated design,
which can be quickly read, multi-tag simultaneous reading and
widely used in RFID systems;
The PUHF-9-12db card reader is mounted on a bracket and is equipped
with a power supply. The housing is made of PET material and has an
IP65 waterproof rating, which works perfectly in rainy days without
additional accessories. In addition to the uhf card, it can also be
used with various uhf passive tags, so that the customer does not
need to open the window in the rain, and the long range tag is
attached to the windshield. After the tag enters the magnetic
field, the UHF receives the RF signal from the card reader. The
energy obtained by the induced current sends out the tag
information (passive tag) stored in the chip. It is an ideal
solution for applications such as parking lot access management,
personnel management, and warehouse management.
Advantages of Long Distance 902-928MHz UHF RFID 125kHz RFID Card
Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader
Long Range Reading Distance;
The Integrated JUTAI UHF Reader with Wiegand (PUHF-9-12) has very
special and important design requirements. At the same time, due to
the complexity of the project site, the exact adhesive position of
RFID passive tag, which requires the antenna to have a simple and
stable structure and wide reading range. JUTAI 12db UHF antenna has
a wide reading range. The coverage area is large and can reach 1-15
meters (free air reading).
Independent antenna design
JUTAI UHF antenna of the PUHF-9-12db and inside electronic pannel,
all are in one unit,not seperately and which greatly reducing the
hidden cost and installation cost also ;
Adjustable frequency
JUTAI's PUHF-9-12db read head integrates 860~868MHz and 902~928MHz
operating frequency, supports multi-national frequency band,
frequency selection, can be adjusted according to different
countries and regions: 865-868mhz (EU), 902-928mhz (USA ),
865-867nhz (India). PUHF-9-12db is suitable for all countries and
meets international RF standards, so customers can use it with
confidence.
Working With JUTAI High security UHF sticker/tag / printable card
1.PU6C-9B UHF Single Frequency Card ;
2.PUHF-L1 waterproof anti-Sparkle car light UHF sticker /
windshield tag
3.PUHF-L2 waterproof UHF tag (can be fixed to the license plate)
4.CU-96 dual-frequency card (UHF+13.56MHz), can work with
PUHF-9A-12db long distance, can also work with Mifare reader,
low-cost one card access control solution.(UHF+13.56MHz),

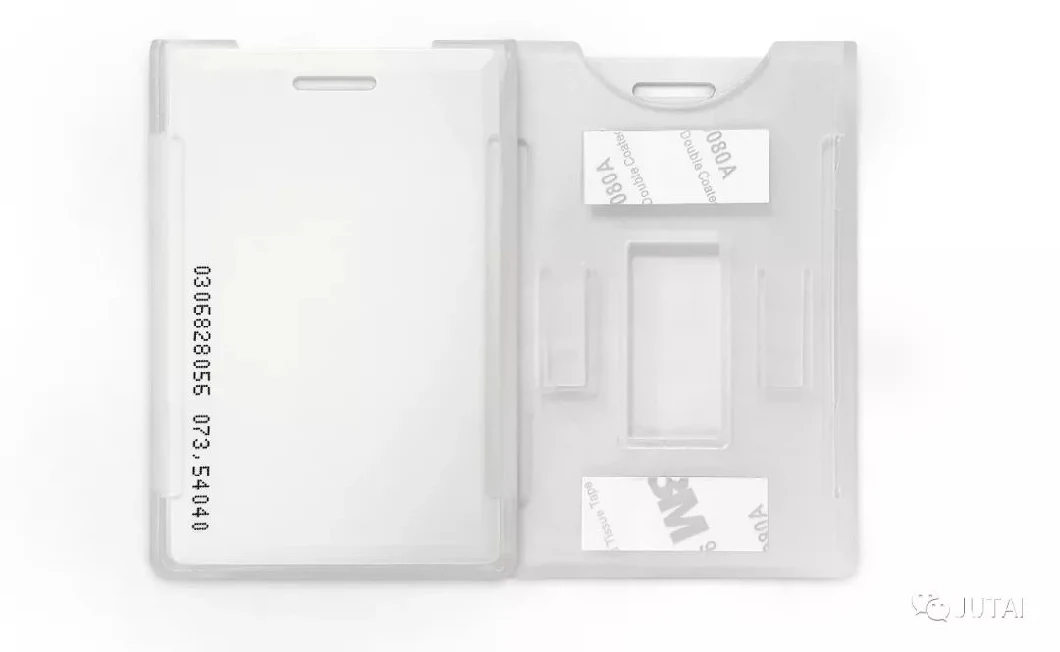

5.CS-56 card holder can be used to attach the card to the
windshield or other position, making it difficult to lose the card
and total hands-free access and exit.
Choosing JUTAI UHF card reader and all kinds of stickers and cards,
it is more secure and JUTAI UHF is written into a special program,
which is different from the conventional procedures on the market,
so that customers can use our products more safely and reliably.

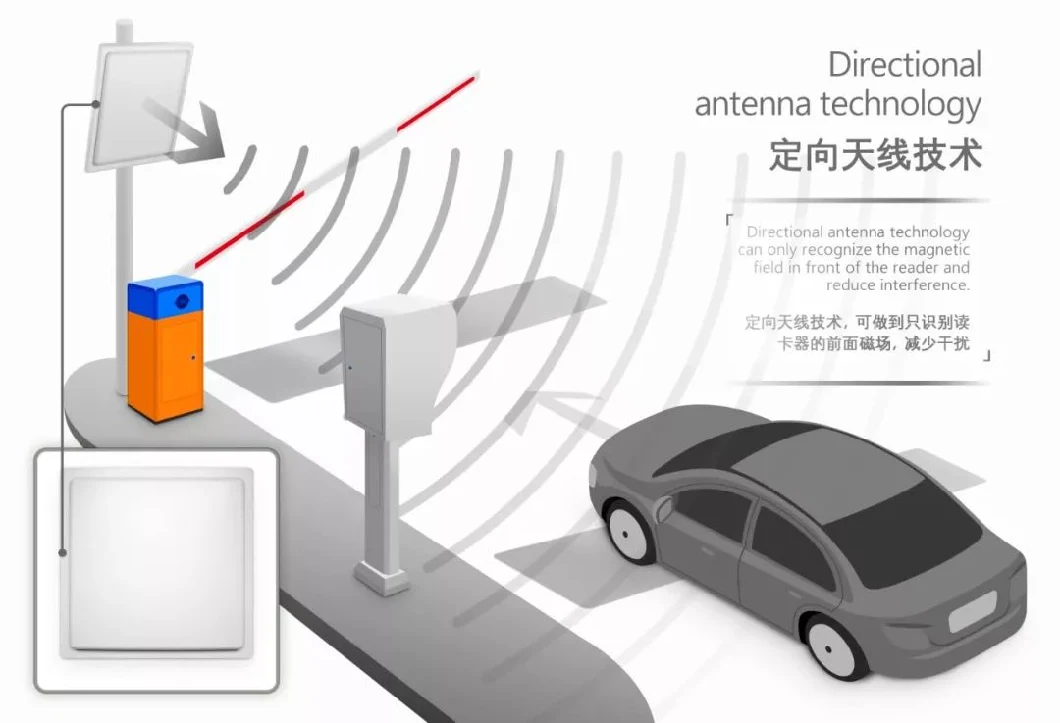

Directional Antenna Technology
Directional antenna technology can only recognize the magnetic
field in front of the reader and reduce interference.
Comply With international environmental standards
JUTAI's UHF readers control the power below 0.5W, comply with
international environmental standards, can be used in various
countries, and is safe for human body.
Wiegand Interface
The UHF UHF with Wiegand 26 or Wiegand 34 interface allows
customers to directly integrate with existing access control
systems;

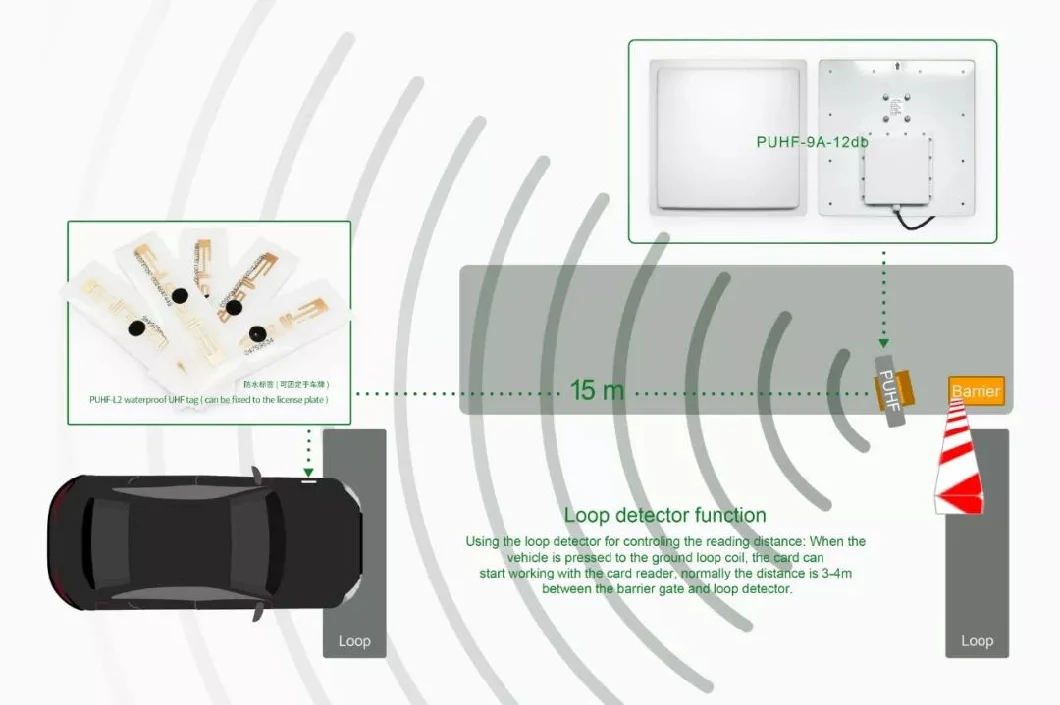

Loop Detector Function (optional)
The JUTAI UHF Long range reader can work with our vehicle loop
detectors. For some project site applications, the use of the loop
sense of ground (control card reading distance) function to manage
only the vehicle, can reduce the error operation, when the vehicle
is pressed to the ground coil, the card can start working with the
card reader, which can The entire system is highly reliable and
secure.
Software of Collecting UHF Card ID

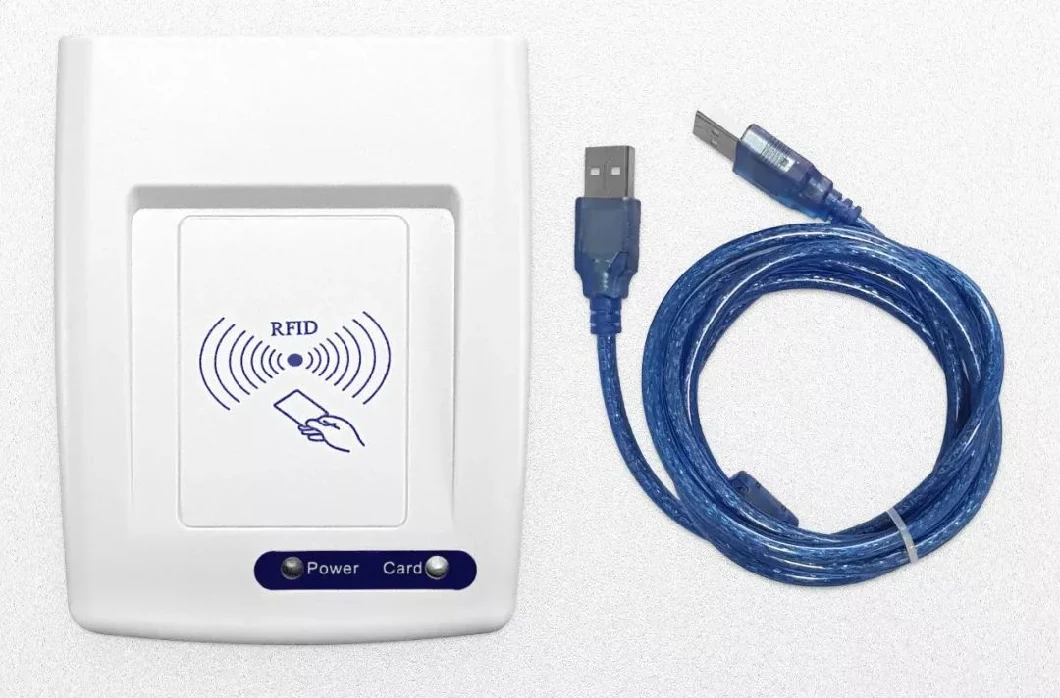

DT-9 desktop card issuer reader, through the connection of USB
cable to the computer, the software developed by jutai can read UHF
tags/card EPC information and automatically read its Wiegand data,
so that customers can manage a large number of tags/cards.
IP65 Waterproof Rating
Our card readers are IP56 rated for perfect work in rainy days,
saving you money without the need for extra accessories.
Cover
With hard-shell cover, it has the function of convenient
maintenance and better protection of products compared with the
traditional rubber cover mode, without waste, without increasing
cost, and the hot-melt adhesive edge seal makes it more firm and
waterproof.
Wiring Diagram:
| Red | DC+9~12V | Blue | WG D1 |
| Light Pink | RS485A+ | Brown | TXD---(RS232) |
| Black | 0V | Green | WG D0 |
| Yellow Green | RS485B- | White | RXD ---(RS232) |
| Black | 0V Ground | Yellow | Short cut to loop signal |
Packaging
Strict packaging is to ensure that the product can reach the
customer in perfect condition and work effectively.
Anti-static pearl cotton + bubble pad + anti-static bag + carton
Product Series
| PUHF-9 | PUHF-9P | PUHF9-8/9R2P | PU6C-9B | PU6C-9BP |
 1-9 m
Regluar Version
|
1-9 m Encryption Version
| 1-9 m High Level Encryption Version
|
Regular Version Used
|
Encryption Version Used
|
| PUHF-9-12P | PUHF-9-12P | PUHF12-8/9R2P | PUHF-L1 | PUHF-L1P |
1-12m Regluar Version
|
1-12 m Encryption Version
|
1-12 m High Level Encryption
|
Regular Version Used
|
Encryption Version Used
|
