Toll collection systems Dual channel loop detector Fault Diagnosis Long Service Life

Toll collection systems equipped with Dual Channel Loop Detectors provide an innovative solution for efficient vehicle monitoring and transaction management. Designed specifically for use in toll plazas and highway systems, these detectors accurately identify vehicle presence, ensuring seamless and rapid toll collection. By utilizing dual-channel technology, the system can monitor multiple lanes simultaneously, significantly enhancing traffic flow and reducing wait times for drivers. This capability is essential in busy toll environments, where efficiency and speed are paramount.

In terms of performance, these loop detectors feature advanced fault diagnosis capabilities that facilitate quick identification and resolution of issues, minimizing downtime and maintenance costs. Built for durability, they are engineered to withstand harsh environmental conditions, ensuring a long service life even under heavy use. The high sensitivity of the detectors allows for reliable operation across various vehicle types and sizes, which is crucial for accurate toll assessment. With easy installation and integration into existing toll collection infrastructures, these dual channel loop detectors enhance the overall efficiency and reliability of toll operations. By implementing this technology, transportation authorities can improve revenue collection, enhance user experience, and ensure the smooth operation of toll systems, ultimately contributing to better traffic management and safety on the roads.

Feature

• 1. 15-2000 μh detection Range
  • The loop detector supports a wide detection range from 15 µH to 2000 µH, accommodating various loop sizes and configurations for versatile application in different traffic detection scenarios.
  • The wide detection range enables our loop detector to detect all kinds of vehicles, motorcycles, cars, Ultra long truck, buses and so on

---

Application

JUTAI High-quality loop detectors have a wide range of applications. Here are the key application areas and specific functionalities:

Application
Traffic Signal Control	Parking Management Systems
Toll Booth Systems	Security and Access Control
Logistics Management	Warehousing Management
Public Transport Management	Municipal Engineering and Infrastructure

• 1. Traffic Signal Control

  • Traffic Light Management: Loop detectors provide real-time vehicle flow detection, dynamically adjusting traffic light durations to improve road efficiency and reduce wait times.
  • Smart Intersection Management: At complex intersections, detectors help manage traffic directions to prevent congestion.

• 2. Parking Management Systems

  • Parking Lot Entry/Exit Management: Detects vehicles entering and leaving, automatically controlling gate operation to ensure orderly and secure parking lots.
  • Parking Space Monitoring: Real-time detection of parking space occupancy, guiding drivers to available spots and optimizing parking lot utilization.

• 3. Toll Booth Systems

  • Vehicle Detection and Billing: At highway toll booths, loop detectors detect vehicles' arrival and departure, accurately recording information to ensure precise billing.
  • Electronic Toll Collection Support: Integrated with electronic toll collection systems, allowing for seamless toll payments and improved traffic flow.

• 4. Security and Access Control

  • Entrance/Exit Control: In residential areas, office buildings, and factories, loop detectors manage vehicle access, ensuring only authorized vehicles can enter.
  • Security Monitoring: Used in sensitive areas for security monitoring, providing real-time tracking and recording of vehicle movements.

• 5. Logistics and Warehousing Management

  • Vehicle Dispatch and Monitoring: In large logistics centers, detectors assist in managing and monitoring vehicle dispatch and movement, optimizing logistics processes.
  • Warehouse Entry/Exit Management: Detecting vehicles entering and exiting warehouses, automatically recording information to enhance warehouse management efficiency.

• 6. Public Transport Management

  • Bus Priority Control: Detecting bus arrivals, optimizing traffic signals to ensure priority passage, and improving public transport service quality.
  • Real-Time Bus Monitoring: Monitoring bus operations in real-time, enhancing dispatch management and passenger service.

• 7. Municipal Engineering and Infrastructure

  • Bridge and Tunnel Monitoring: Installed at the entrance of bridges and tunnels to monitor traffic flow, ensuring safe passage.
  • Road Maintenance Management: Using traffic flow detection to optimize road maintenance schedules, extending road lifespan.

---

Certification

---

Product Series

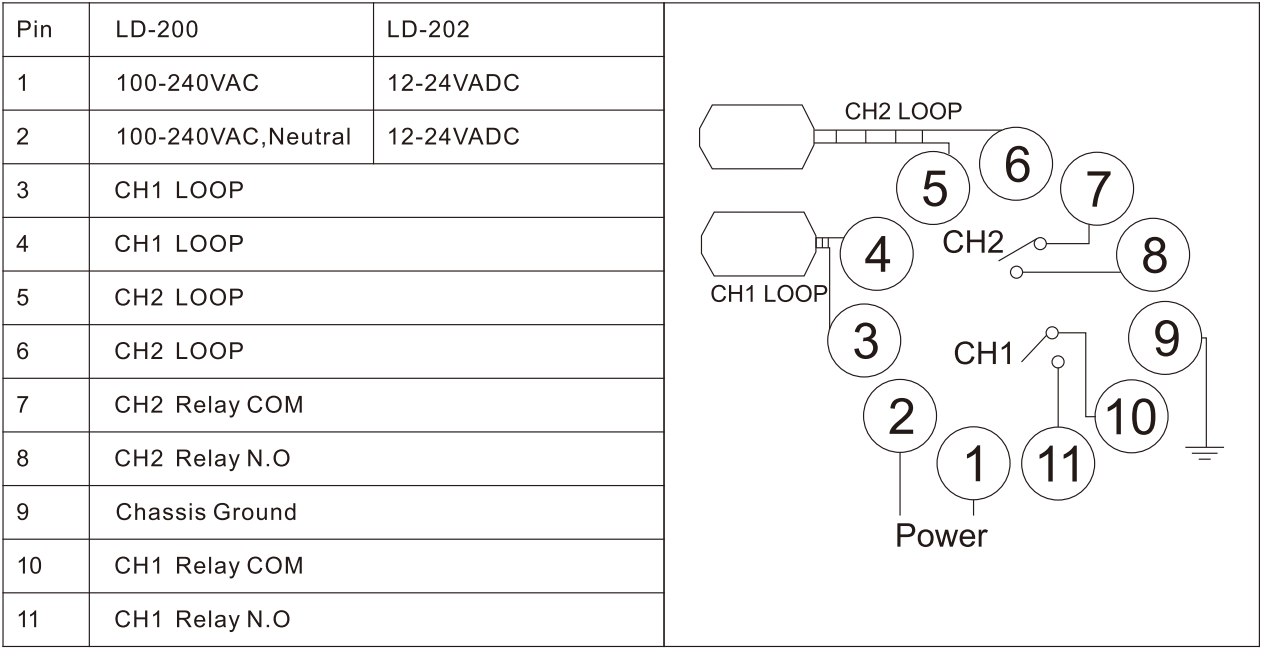

LD-100	LD-102	LD-200	LD-202	JTHT-11
Single Channel 100-240 V AC	Single Channel 12-24 V AC/DC	Dual Channel 100-240 V AC	Dual Channel 12-24 V AV/DC	Loop cable 305 m Teflon coil
LCR-MT
Multimeter

---

Our company is dedicated to the research and development as well as system integration of security products, achieving an intelligent one unified platform that integrates access control, parking management (parking charging system and parking guidance system), traffic lights system, and other functionalities.


Additionally, we have pioneered self-innovation, introducing pioneering concepts in both infrared detection and radar sensing devices. Our innovative technologies consistently lead the industry, and for our clients, we provide premium products, novel application concepts, comprehensive system solutions, and comprehensive technical support.


At JUTAl, we believe in the limitless pursuit of technology. Our research and development philosophy centers around diligence and excellence, striving for continuous improvement. Our ultimate goal is to transcend current standards, providing safer and more convenient services for our living spaces. We firmly believe that our greatest success lies in the success of our customers. Innovation, transcendence, and excellence are our guiding principles.
