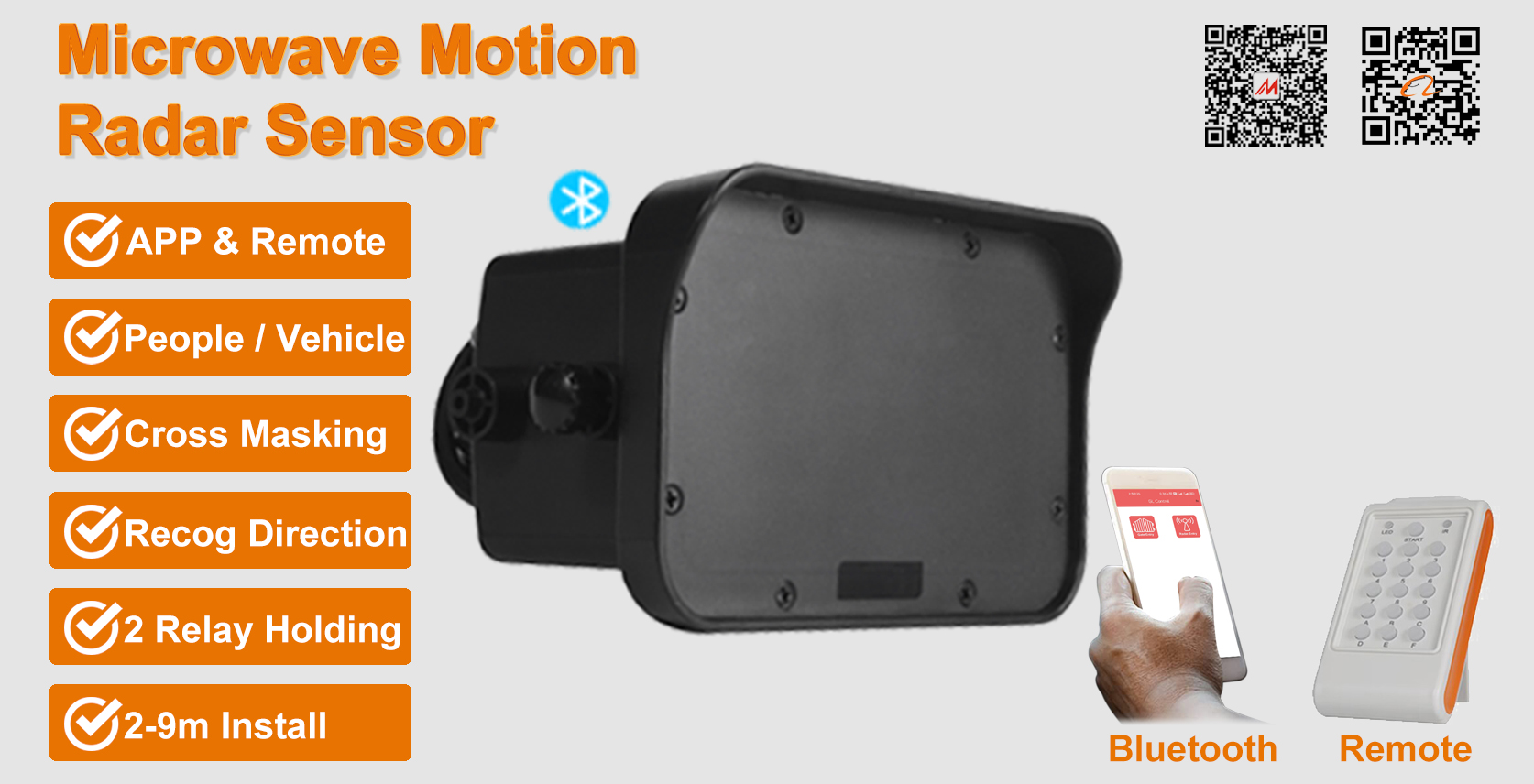

Industrial Door Radar Sensor 12-36 V ADC Car Detect Two Relay Cross Masking Function

The Industrial Door Radar Sensor (12-36 V ADC) is an advanced motion detection solution tailored for industrial applications, particularly in environments where vehicle and pedestrian traffic intersect. This sensor operates within a voltage range of 12 to 36 volts DC, making it versatile for various installations. Its sophisticated car detection capability ensures that automatic doors open promptly for vehicles while maintaining safety for pedestrians. The inclusion of a two relay cross masking function allows for the simultaneous control of multiple devices, such as warning lights or alarms, enhancing safety measures in busy areas like loading docks and warehouses.

In terms of performance, this radar sensor is engineered for reliability and precision. Its advanced detection technology minimizes false alarms and accurately identifies vehicle movements, even in challenging conditions such as low visibility or high foot traffic. The quick response time ensures that doors operate efficiently, reducing wait times and improving workflow. Additionally, the durable design is built to withstand the rigors of industrial environments, ensuring longevity and dependable performance. The sensor’s easy installation and low maintenance requirements make it a practical choice for businesses looking to enhance operational efficiency and safety. By integrating the Industrial Door Radar Sensor with car detection and cross masking capabilities, facilities can significantly improve their traffic management, creating a safer and more efficient environment for both vehicles and personnel.

Feature

• 1. Car Detect Only / People Detect Only

  • Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
  • Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.

• 2. Horizontal Filtration

  • Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
  • Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.

• 3. Longitudinal Orientation Recognition

  • Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
  • Adjustable Functions:
    • A: Detects only forward movement.
    • B: Detects only backward movement.
    • C: Detects both forward and backward movement.

• 4. Setting by Remote Control or Mobile App

  • Remote Control: Allows for quick and responsive setup.
  • Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.

• 5. Maximum Installation Height Up to 9m

  • Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
  • Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.

• 6. Adjustable Detection Area

  • Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
  • Levels of Adjustment: Available in small, medium, and large area settings.

• 7. Easy Integration into Different Systems

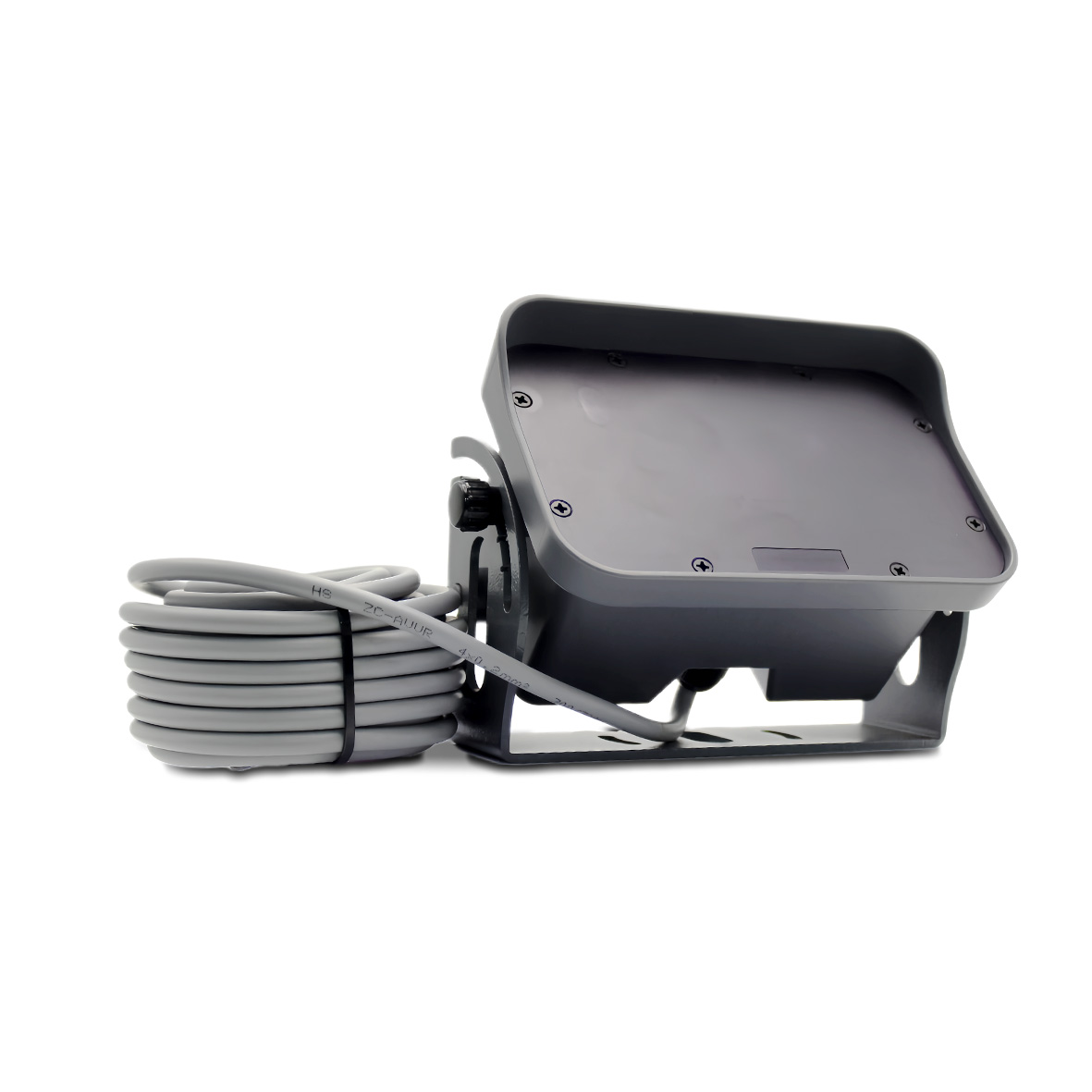

  • Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
  • System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.

Application

• 1. Industrial Door Control

  • Automatic Door Control: Industrial doors can be set to open fully for vehicles and partially or maintain a smaller opening for pedestrians, based on radar detection.
  • Shunt Control: Separately manages the two relays to handle pedestrians and vehicles differently, ensuring safety and efficiency.

• 2. Car Park Management

  • Lane Control: Manages lane gates and pedestrian gates at the car park entrance and exit based on detected vehicles or pedestrians, enabling automated management.
  • Safety Monitoring: Ensures vehicles and pedestrians stay within designated areas to minimize accidents.

• 3. Intelligent Building Management

  • Entrance Control: Differentiates between pedestrians and vehicles at building entrances to manage pedestrian and vehicle access efficiently.
  • Energy Consumption Management: Controls lighting, air conditioning, and other equipment based on detection results to optimize energy use.

• 4. Security System

  • Intrusion Detection: Distinguishes between pedestrian and vehicle intrusions, triggering appropriate alarm systems for enhanced security.
  • Automatic Locking: Automatically locks or unlocks areas based on detection results, ensuring safety.

• 5. Intelligent Traffic Management

  • Traffic Signal Control: Separately detects pedestrians and vehicles at intersections or pedestrian overpasses, controlling traffic signals to improve efficiency and safety.
  • Intelligent Parking Guidance: Guides vehicles into designated parking areas based on the number and location of detected vehicles, enhancing parking management efficiency.

• 6. Logistics and Warehouse Management

  • Sorting System: Controls different sorting equipment based on detection results to improve sorting efficiency.
  • Warehouse Door Control: Automatically manages warehouse door operations according to detected vehicle or personnel activity, improving logistics efficiency and safety.

• 7. Medical Institutions

  • Contactless Door Control: Differentiates between pedestrians and vehicles at hospital entrances to manage pedestrian and emergency vehicle access doors, reducing contact and infection risk.
  • Emergency Channel Management: Automatically opens or closes emergency channels based on detection results, ensuring quick and efficient emergency response.

Certification

Product Series

RVP42-7ME	RVP42-7BW	RVP42-9ME	RVP42-9BW	RVP42-R
2-7 m Insatallation High Remote setting only	2-7m Installation High Remote Setting Mobile APP Setting	2-9m Installation High Inside Button Setting Remote Setting	2-9m Installation High Inside Button Setting Remote Setting Mobile APP Setting	Radar Remote for All Sensor

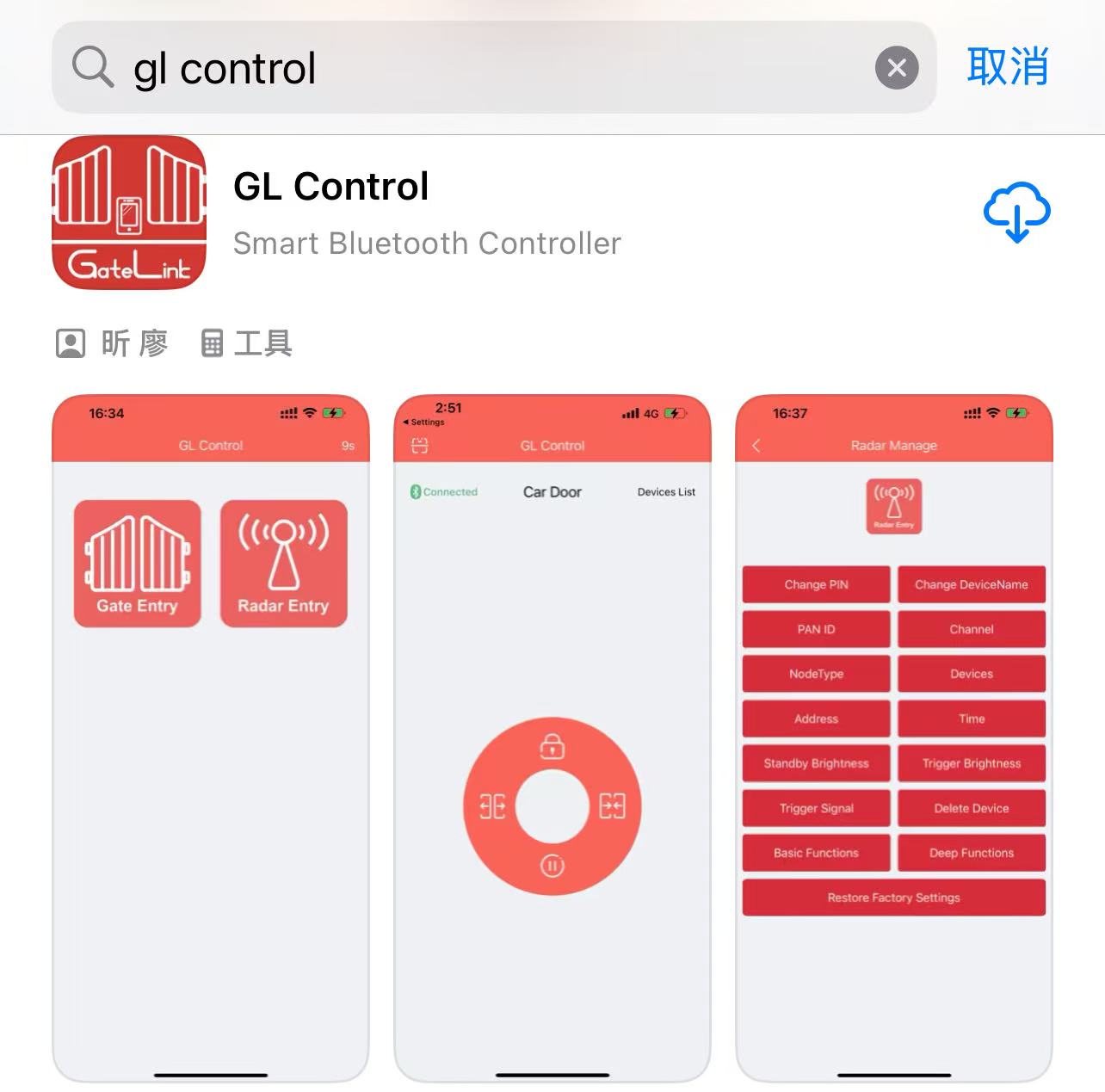

Android APP QR Code	iOS system App
Scan the QR Code to Get the Android System APP	Search "GL Control" in iOS App store to get the APP
